Wire screen mesh

VOMATEX
Wire screen mesh

All fine wire meshs can be used as final covers on upper press plates. Moreover wire screens are used as steam diffusors and filters on ironing tables and presses.
When pressing delicate garments you should choose a very smooth wire mesh and perhaps use a final layer of Nylon- or Aramid-Stretch.
On strongly vaulted presses we advise to use twill woven wire screen because of its better mouldability.

The Polyester wire screens are stainless and do not heat up like metal wire screens. For this reason they prevent from spots and heat marks on the clothing.

Metal wire screen mesh

Metal wire mesh can be installed directly upon the metal press plate. Depending on the mesh no. (#20 very wide, #50 = wide, #60 = medium, #100 = tight) and the weaving method (plain/smooth or twill woven) the metal wire screens are suitable for different machines.

VOMAT-Stainless steel wire screen VM 330 EDG

VOMAT-Stainless steel wire screen
VM 330 EDG

smooth twill

Length of rolls:
abt. 10 meters

Width: 150 cm

Purpose:
Used on presses as
fine final cover

VOMAT-Stainless steel wire screen VM 231

VOMAT-Stainless steel wire screen
VM 231

solid weave, extremely smooth

Length of rolls:
abt. 10 meters

Width: 130 cm

Purpose: Used on the upper plate of presses as very smooth final cover.
The smooth surface is excellent to press sensitive garment like poplin.
It can only be used on flatly vaulted presses due to its stiffness

tinned copper wire screen #100

tinned copper
wire screen
#100

fine twill

Length of rolls:
abt. 10 meters

Width: 150 cm

Purpose:
Used on the upper plate of presses as fine final cover

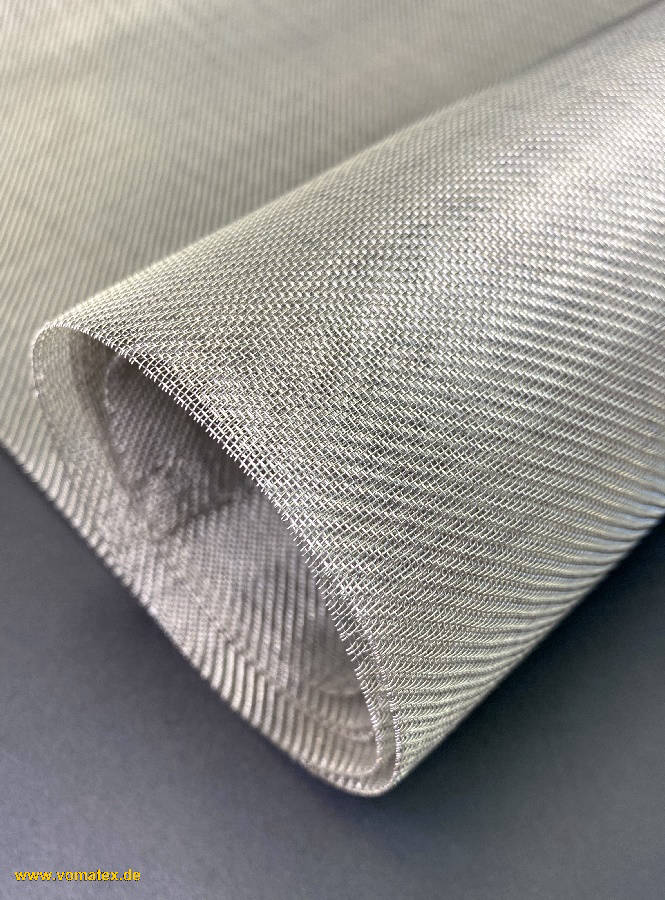

tinned copper wire screen #50

tinned copper
wire screen
#50

twill weave

Length of rolls:
abt. 10 meters

Width: 130 cm

Purpose:
Used by standard on the upper plate of presses as final cover and as a stainless steam diffusing filter layer

bronce wire screen #60

bronze
wire screen
#60

twill weave

Length of rolls:
abt. 10 meters

Width: 130 cm

Purpose:
Used on the upper plate of presses as final cover and as a steam diffusing filter layer

brass wire screen #50

brass
wire screen
#50

twill weave

NO LONGER AVAILABLE!
Please order

tinned copper wire screen #50


copper wire screen #60, plain

copper
wire screen
#60

smooth, plain weave

Length of rolls:
abt. 10 meters

Width: 130 cm

Purpose:
Used on the upper plate of presses as final cover and as a steam diffusing filter layer.
It is not dressable like
twill woven wire screen mesh but smoother!

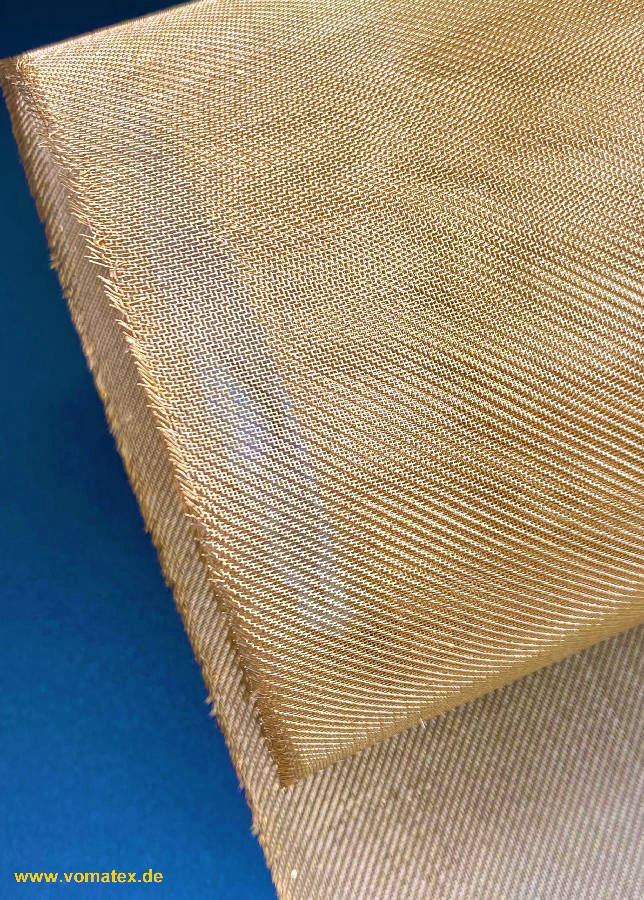

copper wire screen #60, twill

copper
wire screen
#60

twill weave

Length of rolls:
abt. 10 meters

Width: 130 cm

Purpose:
Used on the upper plate of presses as final cover and as a steam diffusing filter layer

stainless steel wire screen #20

stainless steel
wire screen
#20

wide mesh

Length of rolls:
abt. 10 meters

Width: 150 cm

Purpose:
Used on the lower plate as a steam diffusing lower layer which is also improving the vacuum suction

Aluminium wire mesh abt. 4 x 4 mm

Aluminium
wire mesh
abt. 4 x 4 mm

open mesh

Length of rolls:
abt. 30 meters

Width: 120 cm

Purpose:
Used on ironing tables as a steam diffusing lower layer which is also improving the vacuum suction

Polyester wire screen mesh

The Polyester wire screens are stainless and do not heat up like metal wire screens.
For this reason they prevent from spots and heat marks on the clothing.

Polyester wire screen mesh VM 219, twill woven

Polyester wire screen mesh
VM 219, white

twill woven

Length of rolls: 50 meters

Width: 160 cm

Purpose: Used on the upper plate of presses as final cover or upper layer.
Good mouldability!

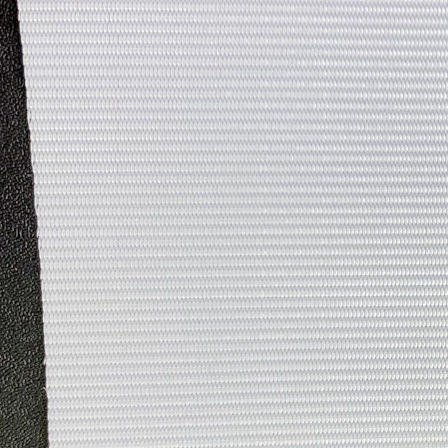

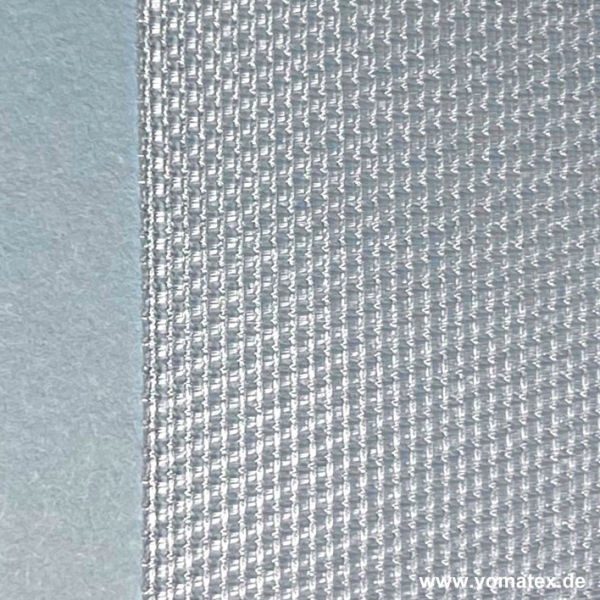

Polyester wire screen mesh VM 220

Polyester wire screen mesh
VM 219, transparent

twill woven

Length of rolls: 50 meters

Width: 160 cm

Purpose: Used on the upper plate of presses as final cover or upper layer.
Good mouldability!

Polyester wire screen mesh VM 294

Polyester wire screen mesh
VM 220

smooth

Length of rolls: 50 meters

Widths: 150 cm, 175 cm

Purpose: Used on ironing tables and presses as final cover especially for seam opening at leg/arm-boards or as anti-shine pocket inlet.

Polyester wire screen VM 294

Polyester wire screen mesh
VM 294

rough open mesh

Length of rolls: 50 meters

Width: 160 cm

Purpose: Used on ironing tables as lower layer for a better steam spreading and for more effective vacuum especially at problems with water on the ironing table.

Polyester silk VM 295

Polyester silk
VM 295

very smooth and fine plain weave

Length of rolls: 30 meters

Width: 150 cm

Purpose:
Used on ironing tables and presses as a very smooth and steam permeable final cover, e.g. for opening seams.

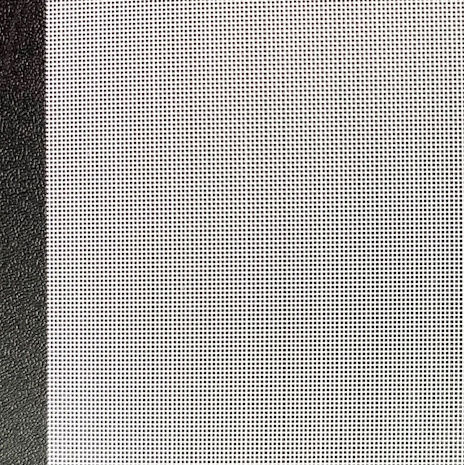

Polyester wire screen mesh VM 222

Polyester wire screen mesh
VM 222

extra fine plain weave

Length of rolls: 10 m, 50 m

Width: 150 cm

Purpose:
Used as upper layer or lower filter layer. Even suitable as final cover.

Excellent value for money!

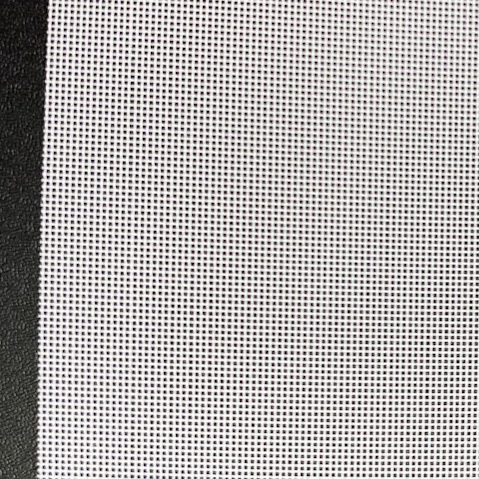

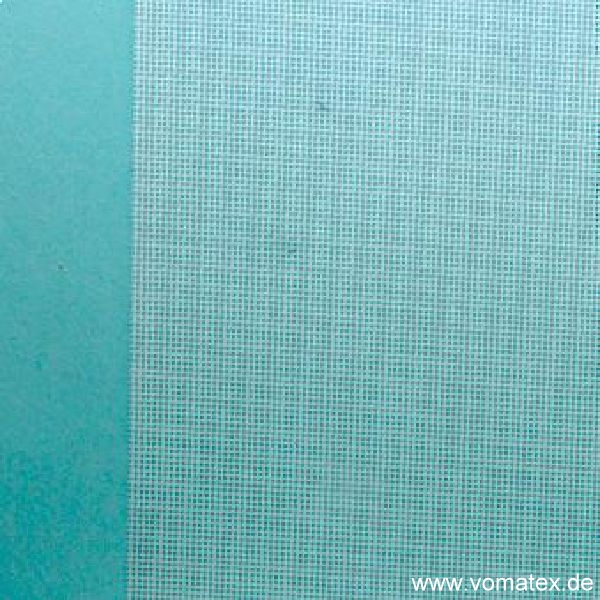

Polyester wire screen mesh VM 224

Polyester wire screen mesh
VM 224

fine plain weave

Length of rolls: 50 meters

Widths: 105 cm, 180 cm

Purpose:
Used on ironing tables as upper layer or lower filter layer.

Polyester wire screen mesh VM 248

Polyester wire screen mesh
VM 248

standard plain weave

Length of rolls: 50 meters

Width: 160 cm

Purpose:
Used on ironing tables as standard upper layer or exhausting filter.

Moirè Pattern

Moirè Pattern

In order to avoid shine on the garment caused by an unbalanced steam distribution you may fix more than one layer of wire screen mesh to the machine.
In case you have problems with a moirè pattern visible on the garment please attach an odd number of  wire screen mesh (usually three).
